DCS F/A-18 BVR Simplest Guide

Chart In General

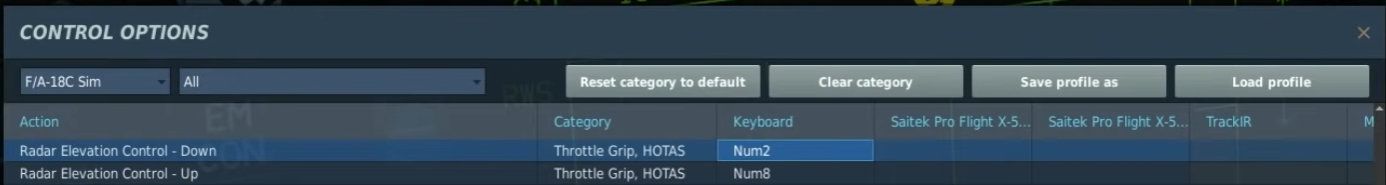

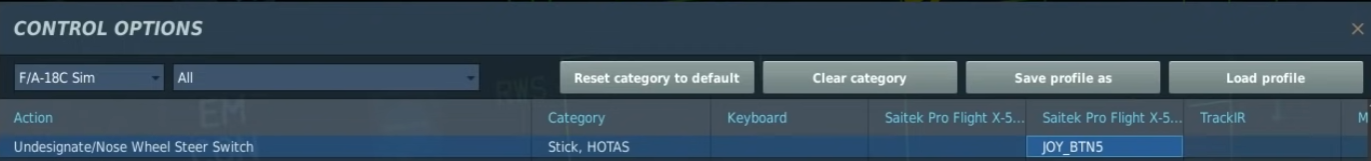

Key Bindings

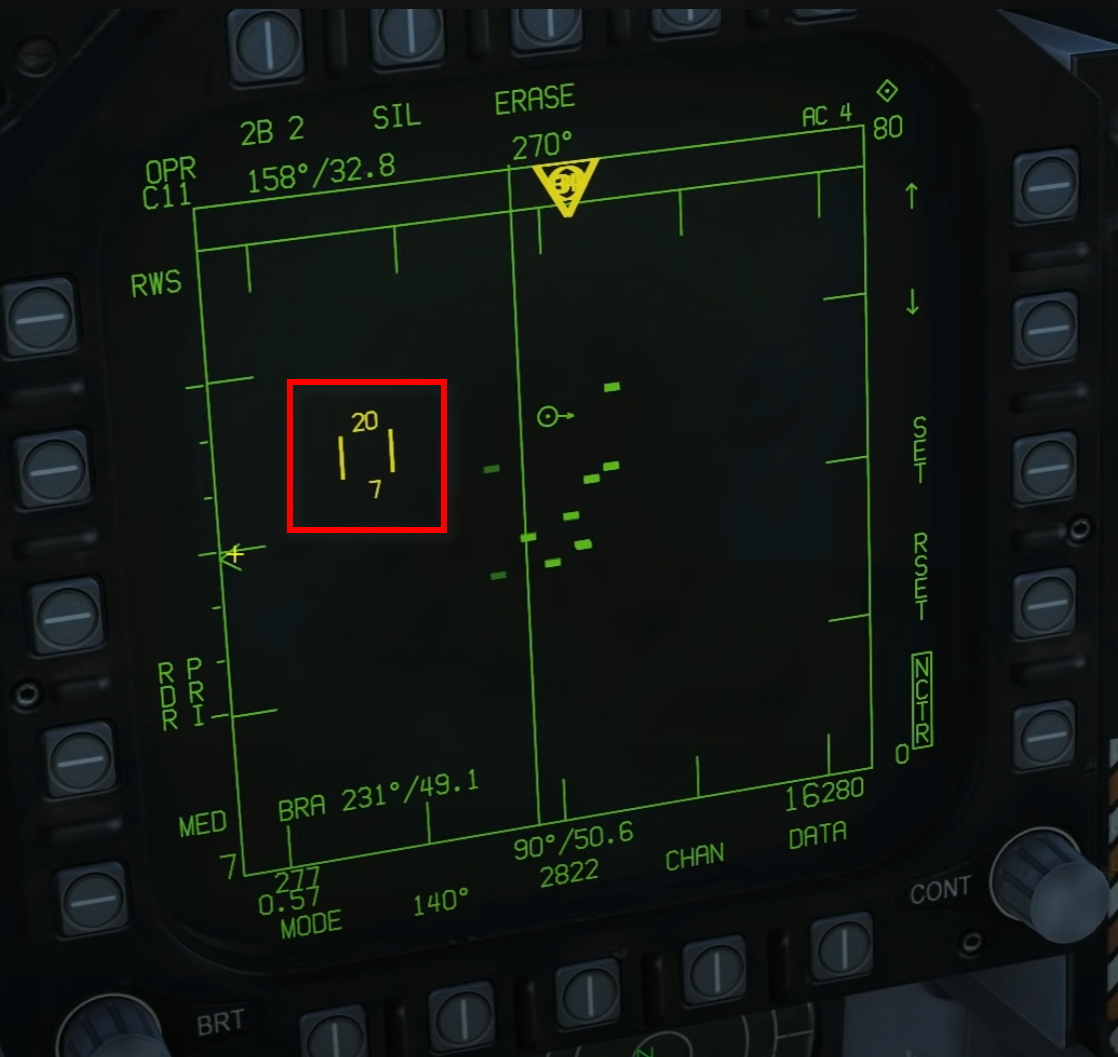

TDC Range

• At Top + 20 k feet
• At Bottom + 7 k feet

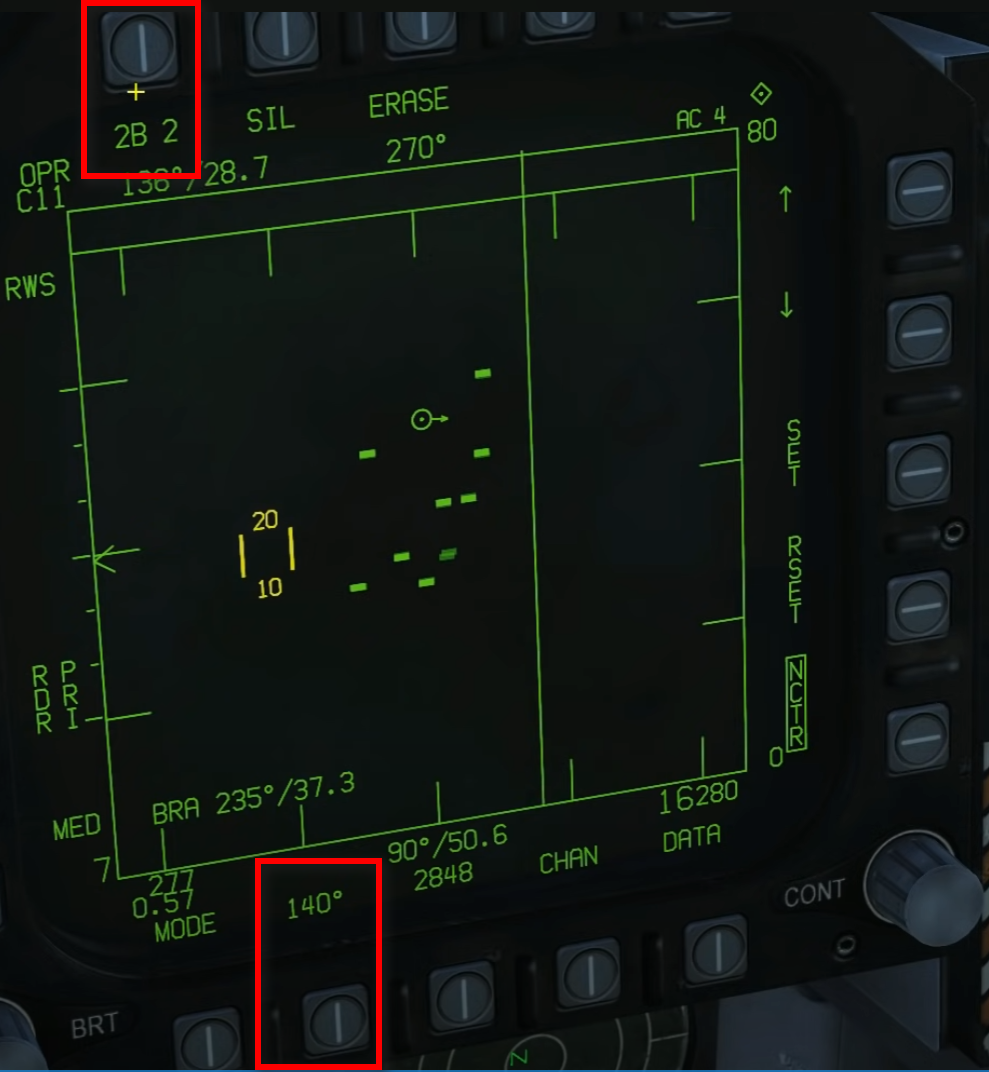

Change Elevation Coverage of Radar

2B 1: Remember 1 Bar is About 1.3 Degrees.

Three BVR Modes

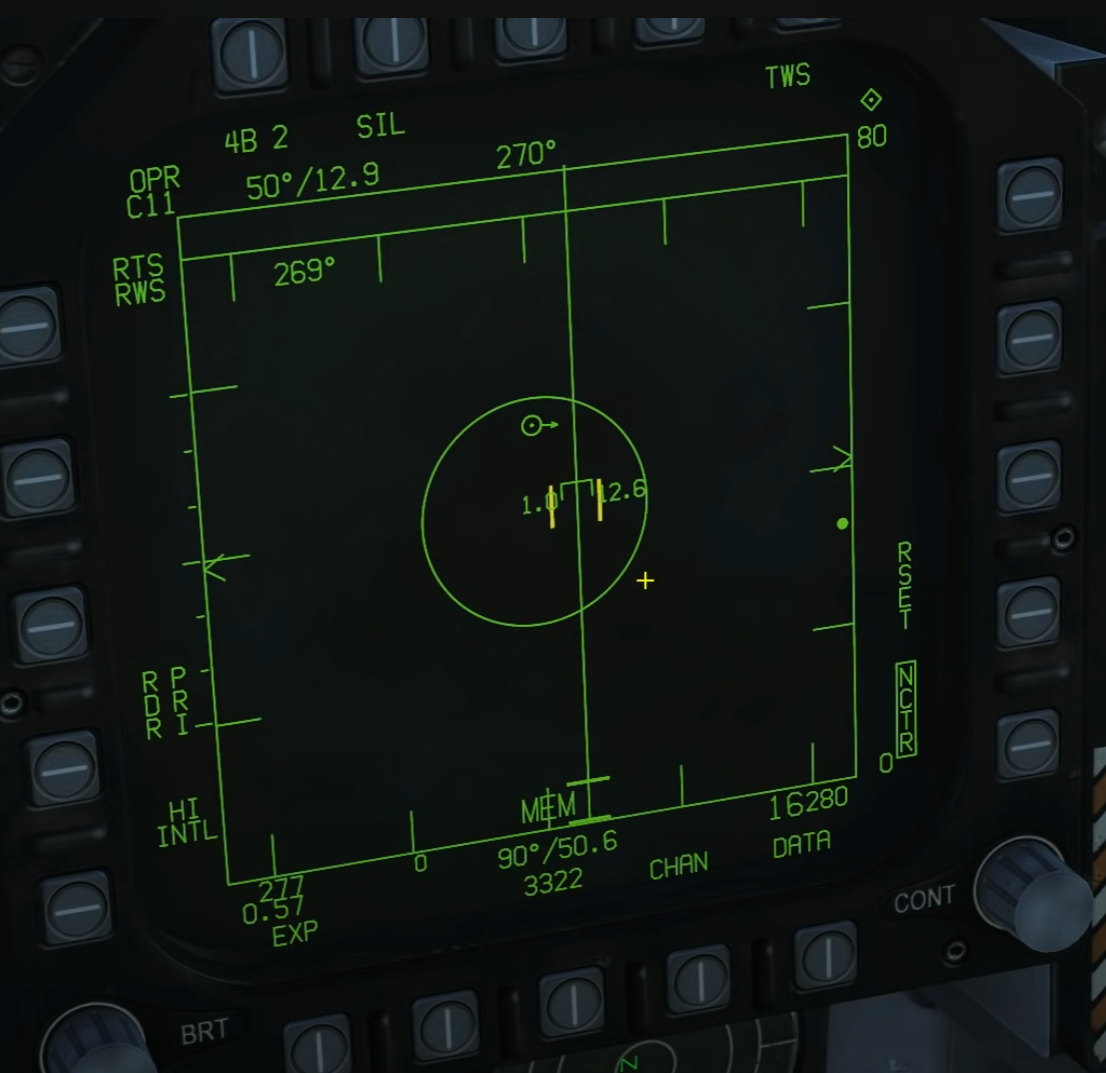

RWS - incl. STT (L&S)(Support For AIM-7 & AIM-120)

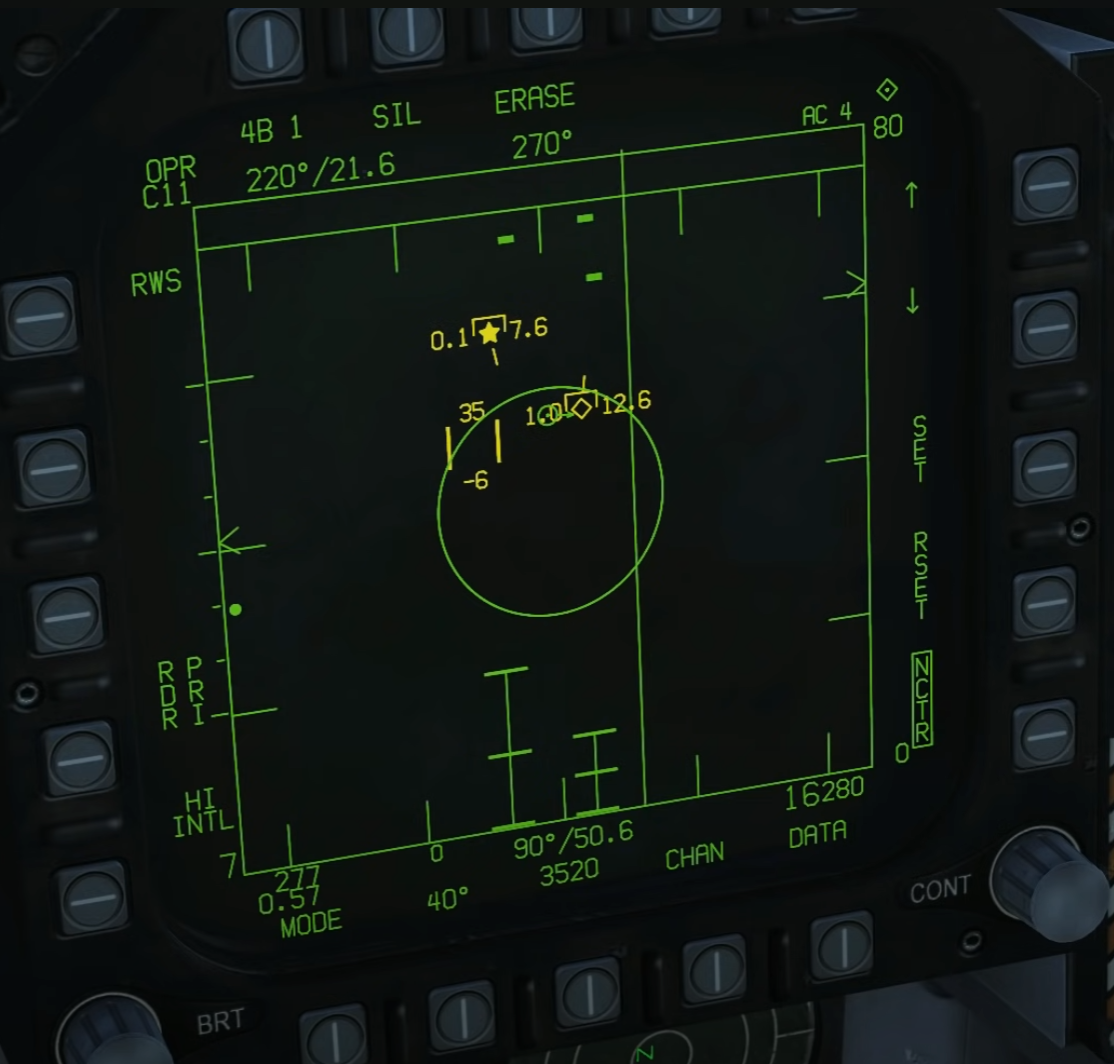

RWS + LTWS (Tracks)

• VIEW TRACK FILE (No Fire Support)
• L&S TRACK FILE (No Fire Support) STAR
• DT2 TRACK FILE (No Fire Support) DIAMOND

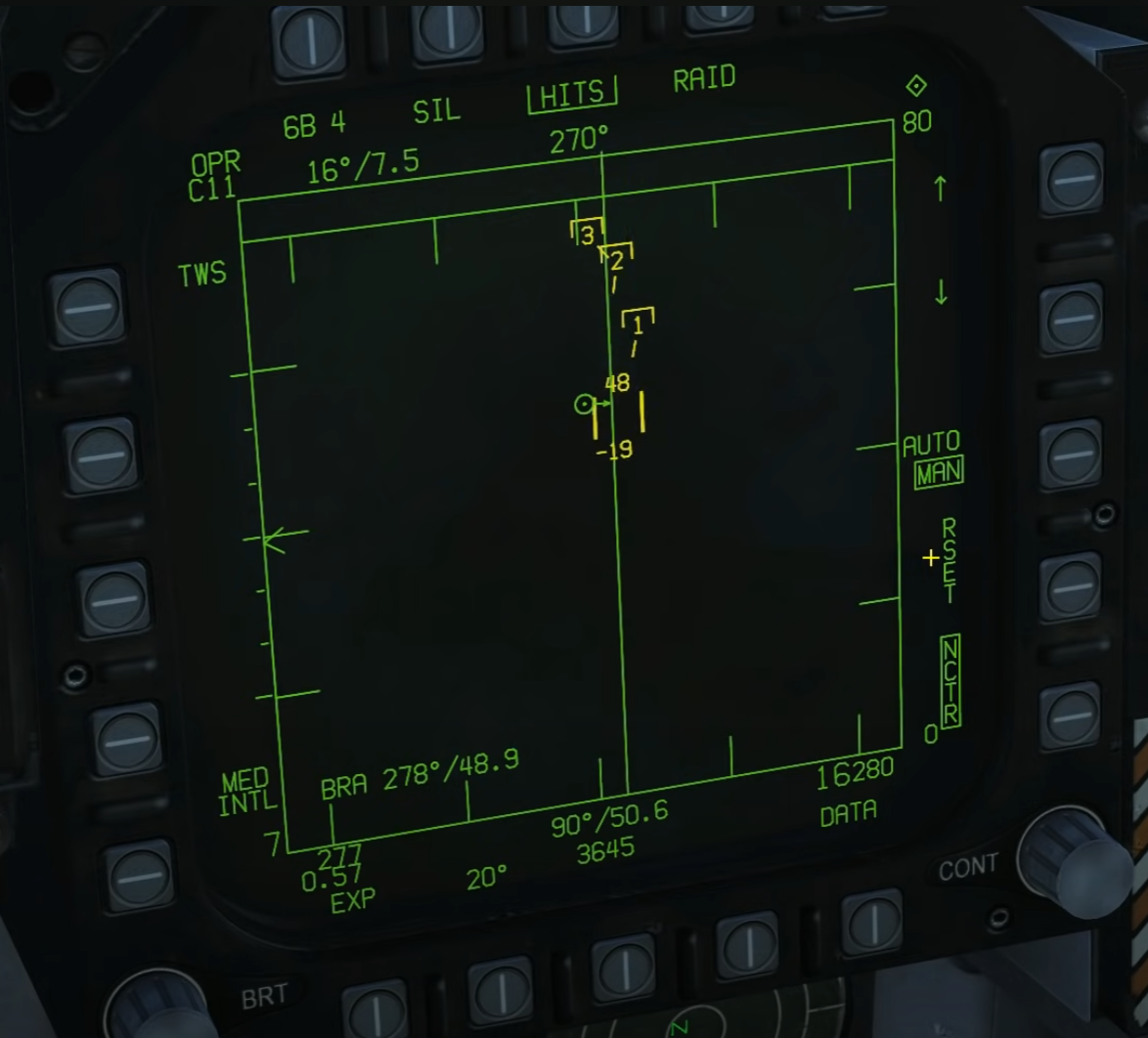

TWS

• incl. STT (L&S)(Support For AIM-7 & AIM-120)

or

• VIEW TRACK FILE (No Fire Support)
• L&S TRACK FILE (Support For AIM-120) STAR
• DT2 TRACK FILE (Support For AIM-120) DIAMOND
